GPS NTP Network Time Server

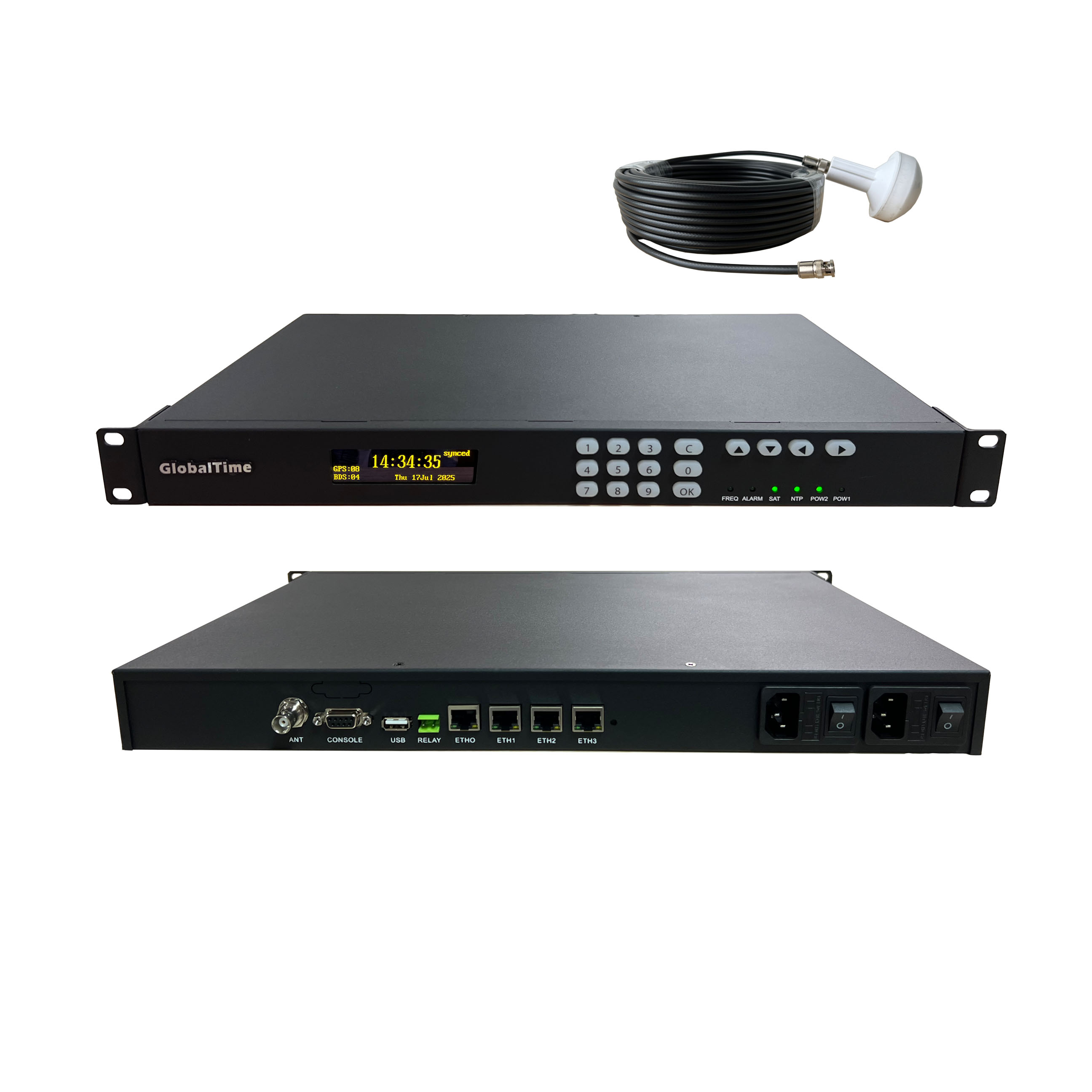

GlobalTime ® NTP Network Time Server supplies accurate time for all computers and time keeping devices on the network. By placing a time server on the local network, (S)NTP time packets are provided without requiring systems to go to the Internet to get a Stratum 1 time synchronization. The system uses an active GPS antenna to maintain the current time as broadcast by GPS satellites.

Features

• Stratum 1 operation via GPS/BeiDou satellites, can also be set as a stratum 2 time server to synchronize with host time server

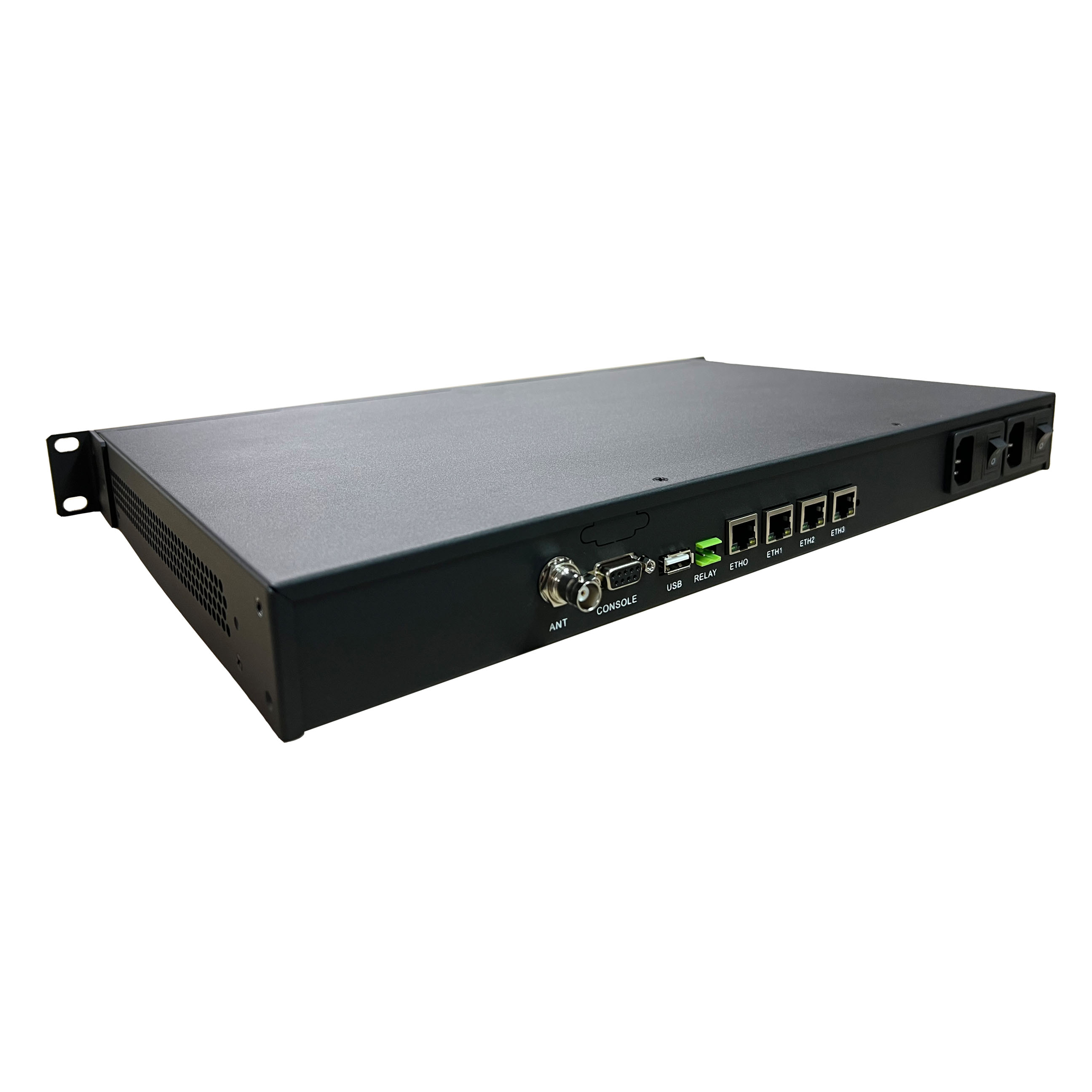

• One/two/four standard GbE ports, all with patented NTP hardware timestamping. The LAN port ETH0 is the management port and cascade port. All ports support SSH/ SNMP/HTTP/HTTPS/NTP.

Web-based management with high security cipher suite, supports HTTP/HTTPS. Supports CLI configuration. Keyboard can be used for easy and fast configuration.

• Exceptional time accuracy to UTC

• Extended environmental specifications

• NTP Server Performance: 20000 NTP requests per second while maintaining accuracy associated with reference time source

Uses RFC1119/1305 NTP (Network Time Protocol)

Supports RFC1769/2030 SNTP (Simple Network Time Protocol)

Supports SNMP, with a serial port for to log in; supports syslog, with iptables security protection.

Supports tracelog. With a second development interface.

• IPv6/IPv4 on all ports. Supports multiple ports BONDING and multiple routes.

• GLONASS/Galileo option

• MTBF: 90000 Hours

Optional TOD/1PPS/10MHz/PTP/IRIG-B output

Optional Rubidium atomic clock or OCXO oscillator upgrade for extended holdover

Applications

• Synchronizes hundreds of thousands of NTP clients

• Security-hardened for peace-of-mind time service operations

• Multiple GbE NTP ports for easy network configuration and adaptation

• Best-in-class time accuracy for improved log file timestamp precision and usability

Very reliable and easy-to-use network time appliance for modern networks and business operations

Network Protocols

RFC 1119 1305 NTP v2/v3/v4

RFC 1769 2030 SNTPv2/v3/ v4

SNMP v1/v2

SSH

HTTP/HTTPS

SFTP

Mechanical/Environmental

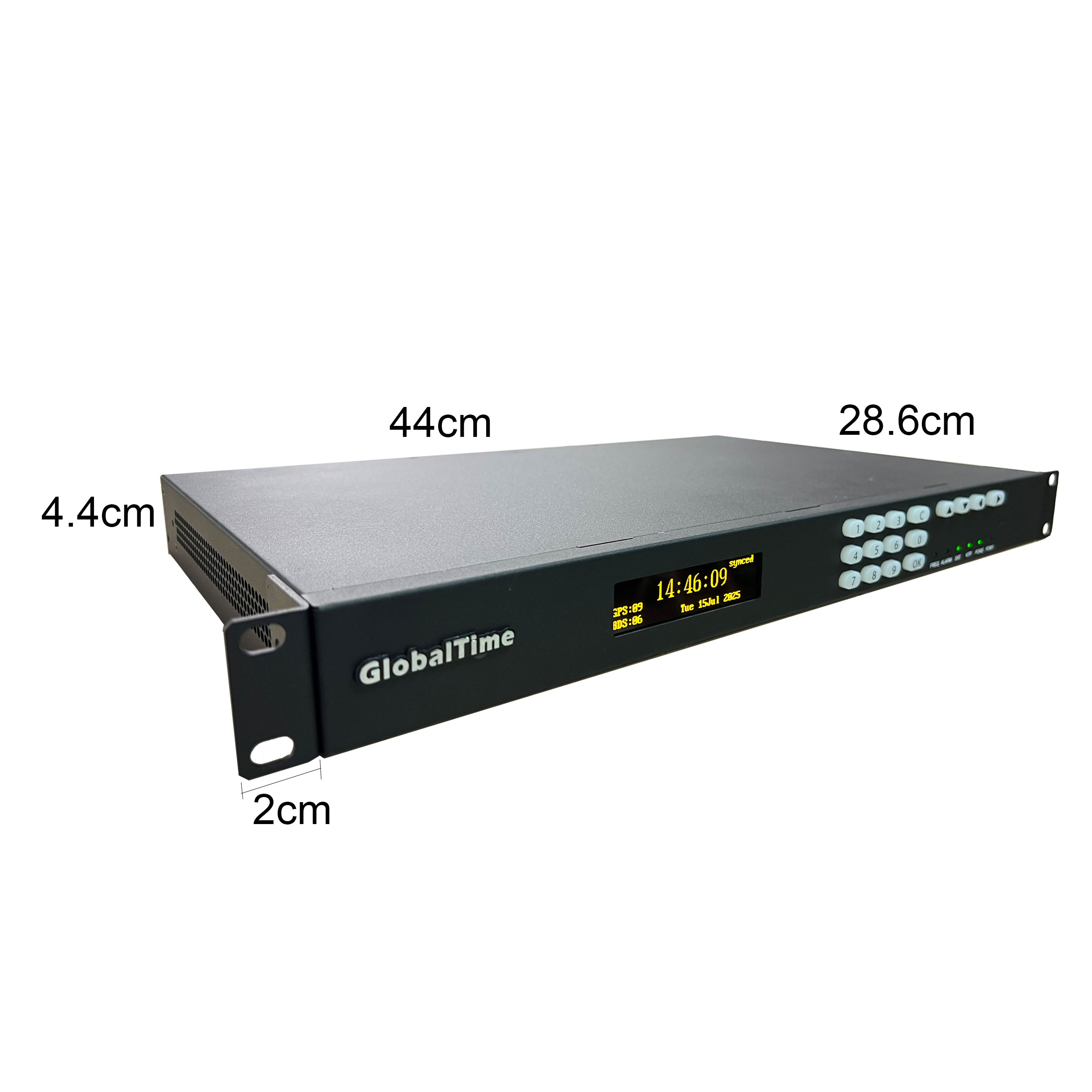

• Size: 44cm x 28.6cm x 4.4cm,1U rack mount, including BNCs

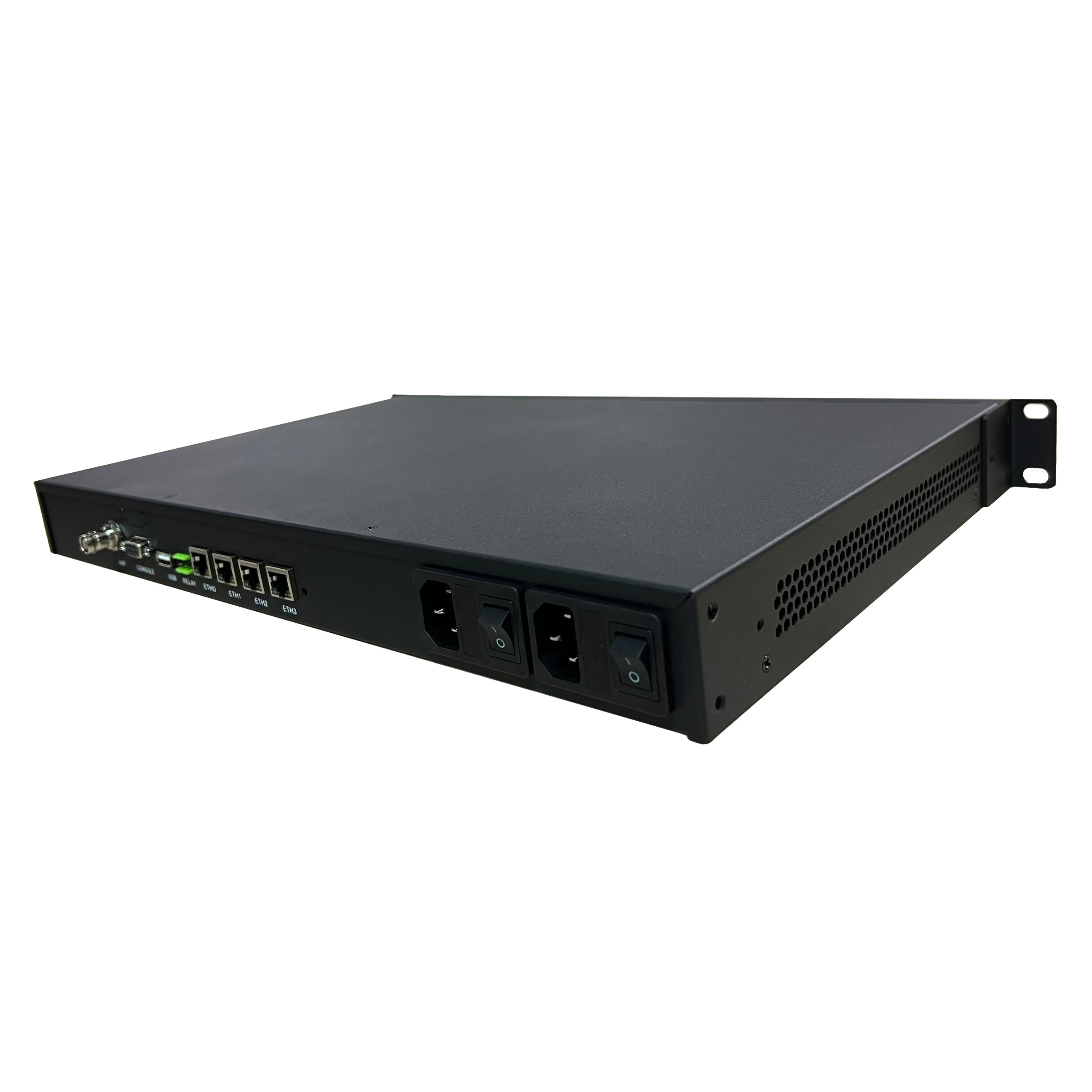

• Power: 10W, 110-230V AC, 50Hz-60Hz, dual power supplies (with dual-corded connectors and load

sharing)

• Operating temperature: -10℃~65℃

• Storage temperature: -40~85

• Operational humidity: 0~90%, non-condensing, IEC 60068-2-78Cb, IEC 60068-2-30Db

Specific Performance Index

GPS/BeiDou receiver

36 channel GPS receiver

Supports GPS/BeiDou frequency band

Cold-start time: 50 seconds

Hot-start time: 2 seconds

Sensitivity: -162dBm

1PPS accuracy: 15ns (1 sigma)

*depends on the location of the antenna

Timing performance

Server Time Level: Stratum 1

Server time precision: 1ms

Precision of client time: 10ms

Timing capacity: >20000 times per second

Oscillator Aging ( yearly)

OCXO: 1E-7

Rb: 1E-9

Compliance

CE FCC RoHS ISO9001
