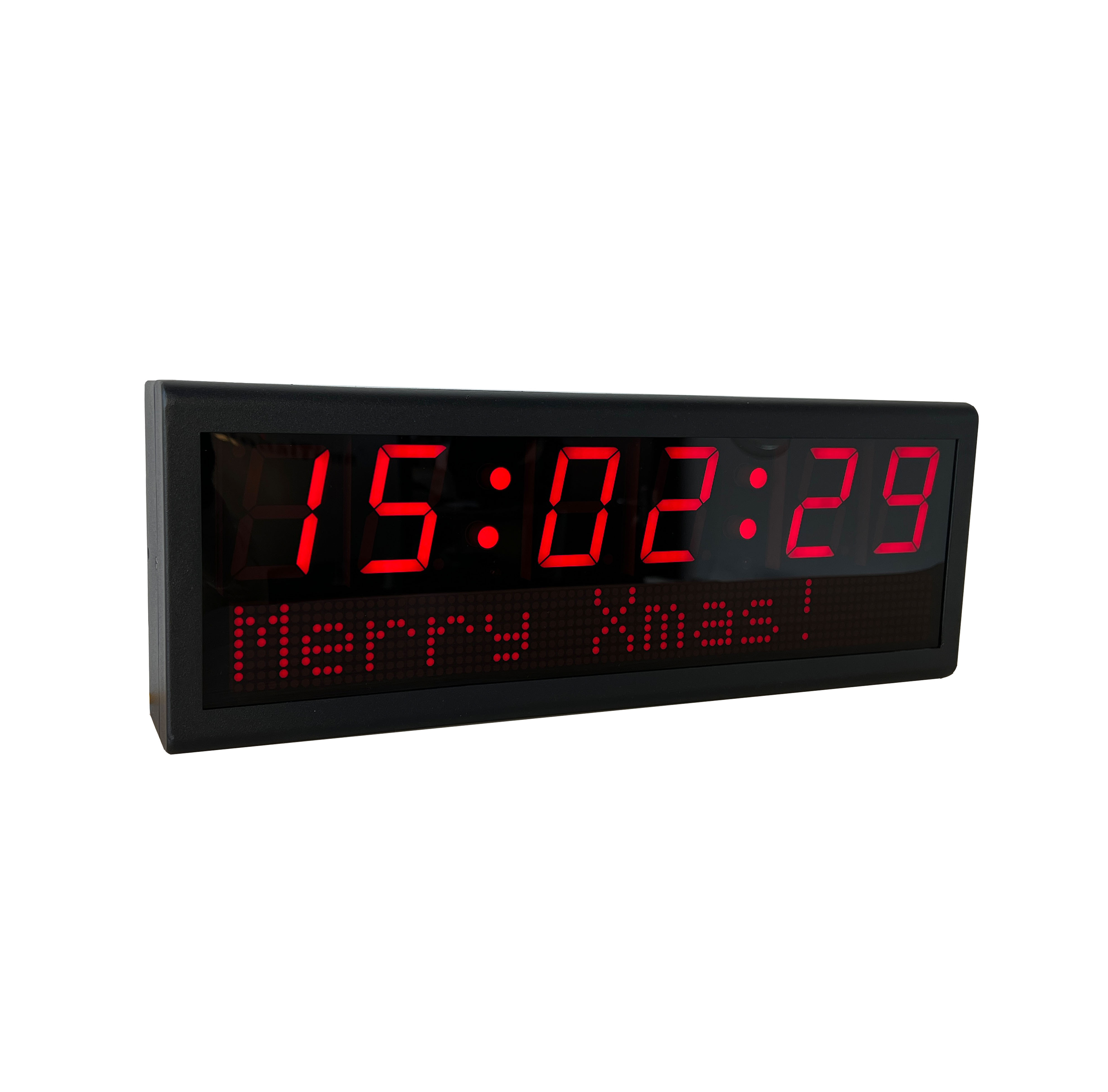

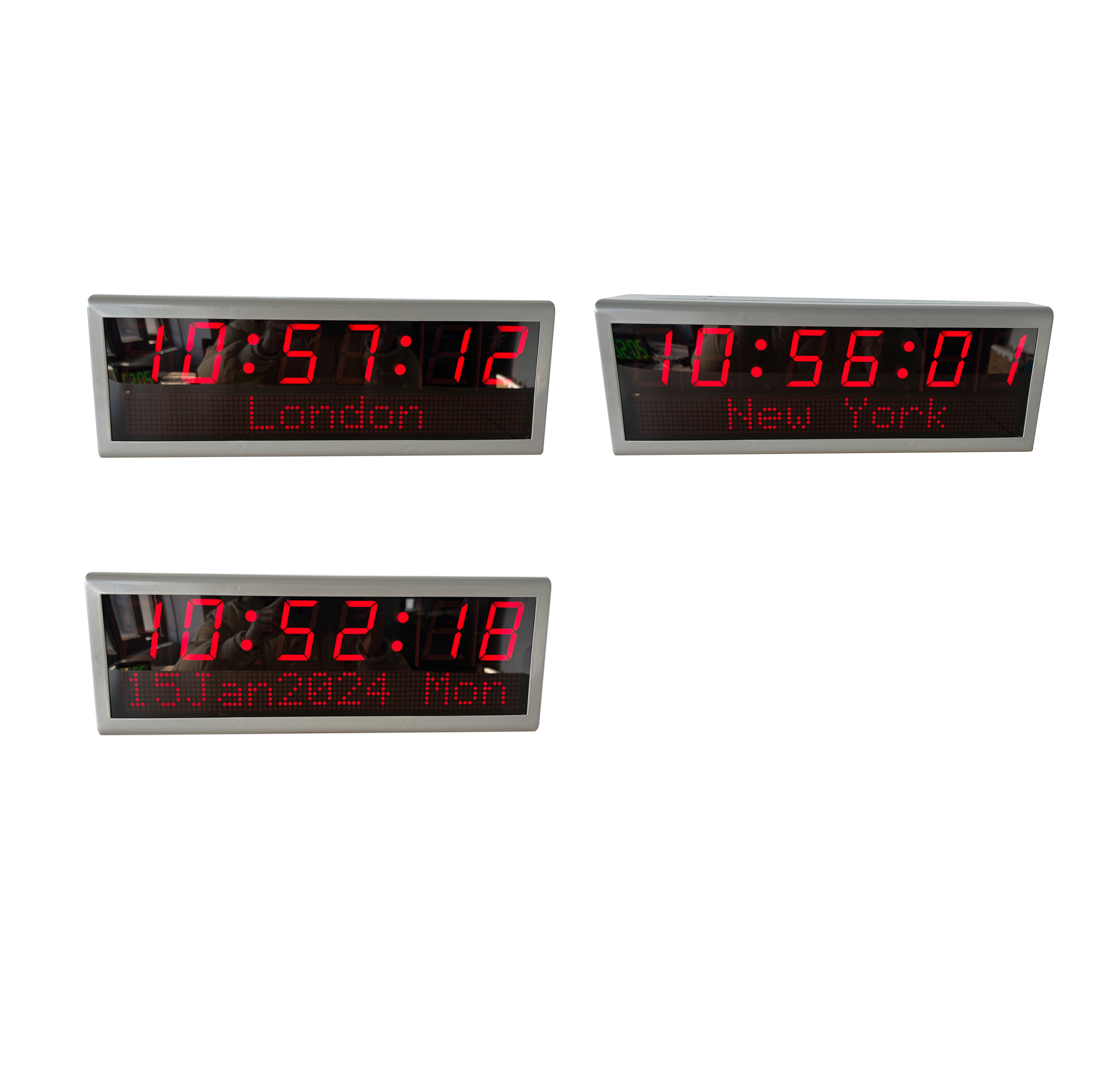

2.3" 6-Digit PoE Clock with Date/ Text

Specifications

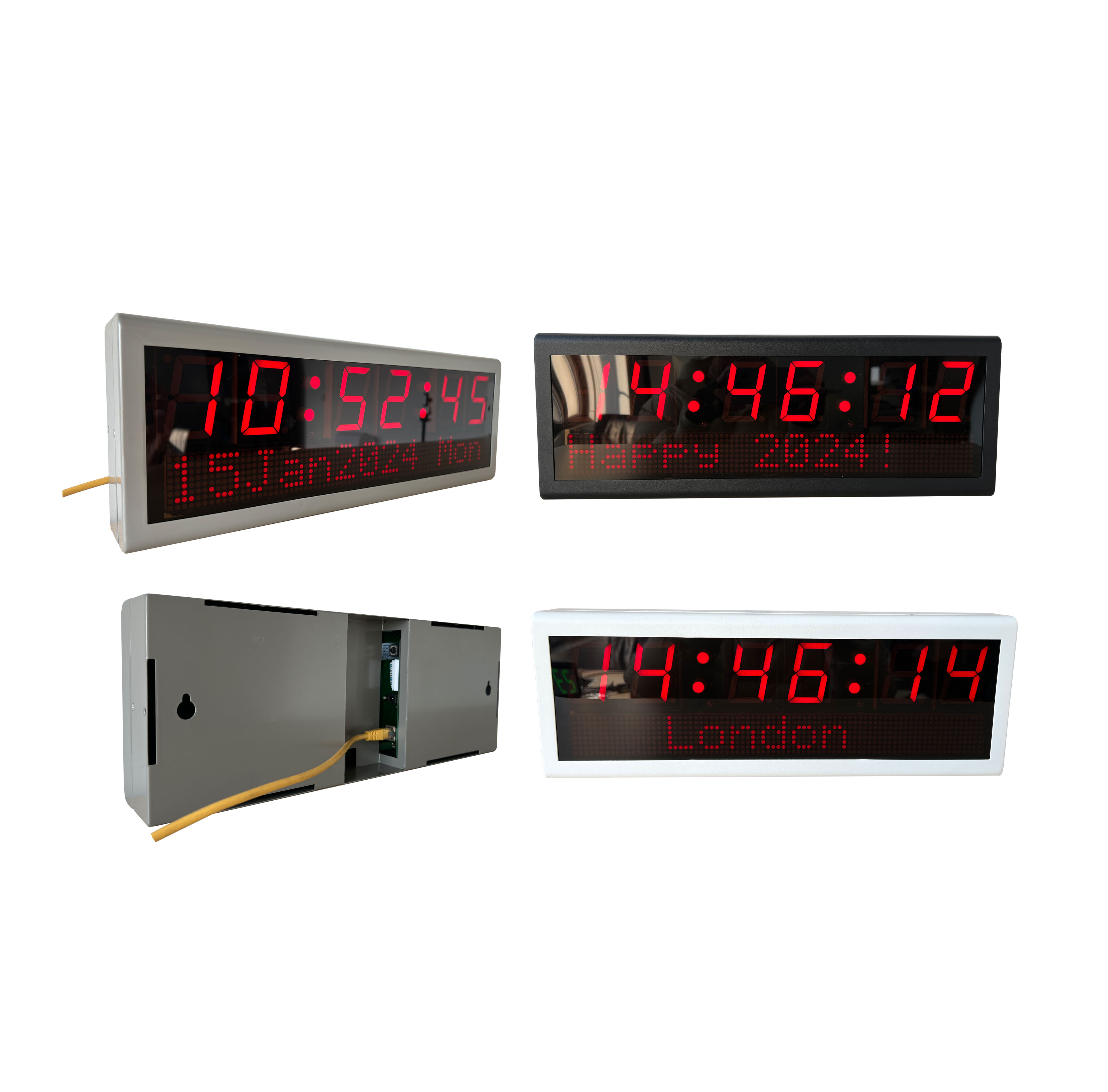

• Case Material: Iron or stainless steel(SS304)

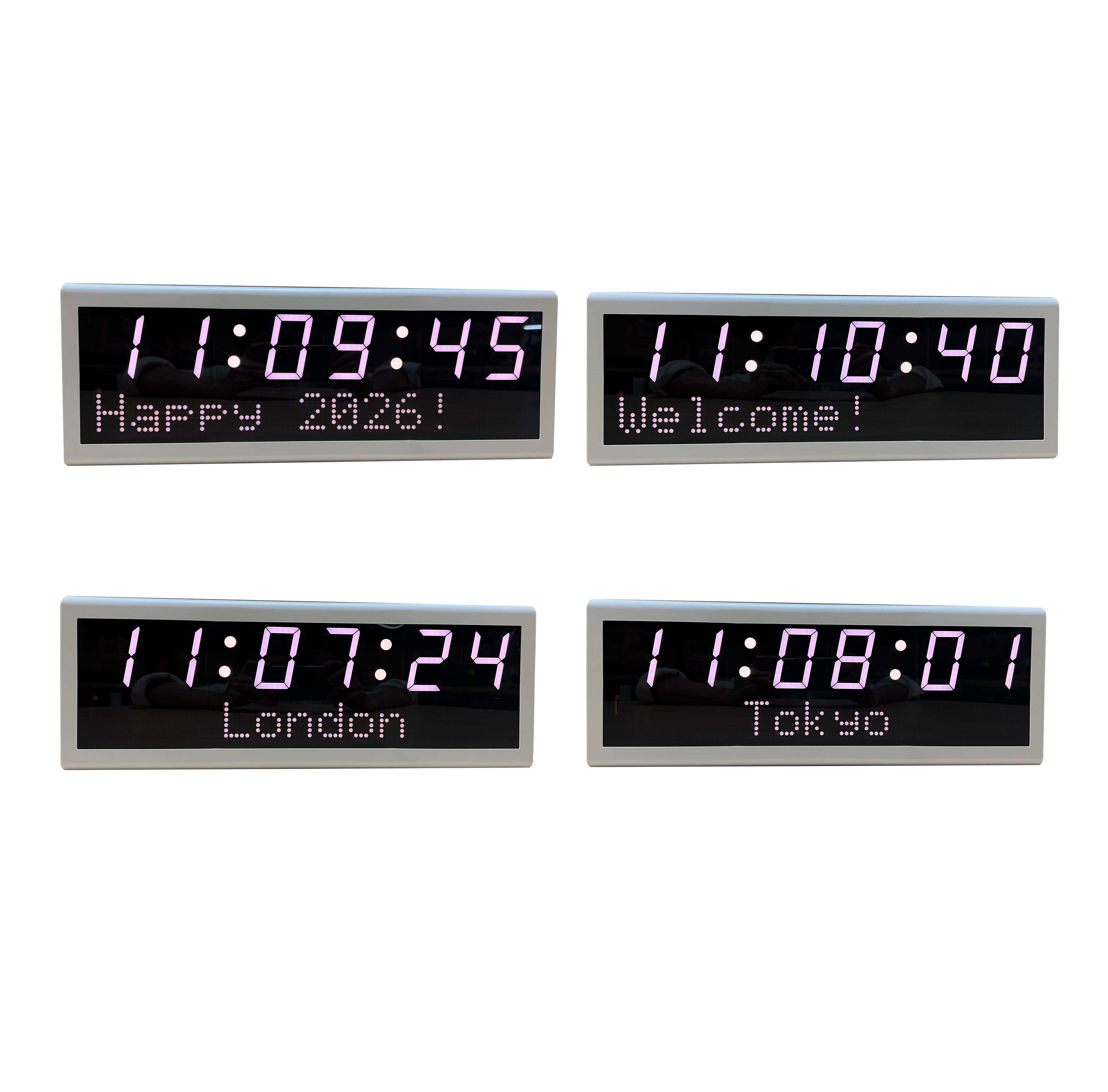

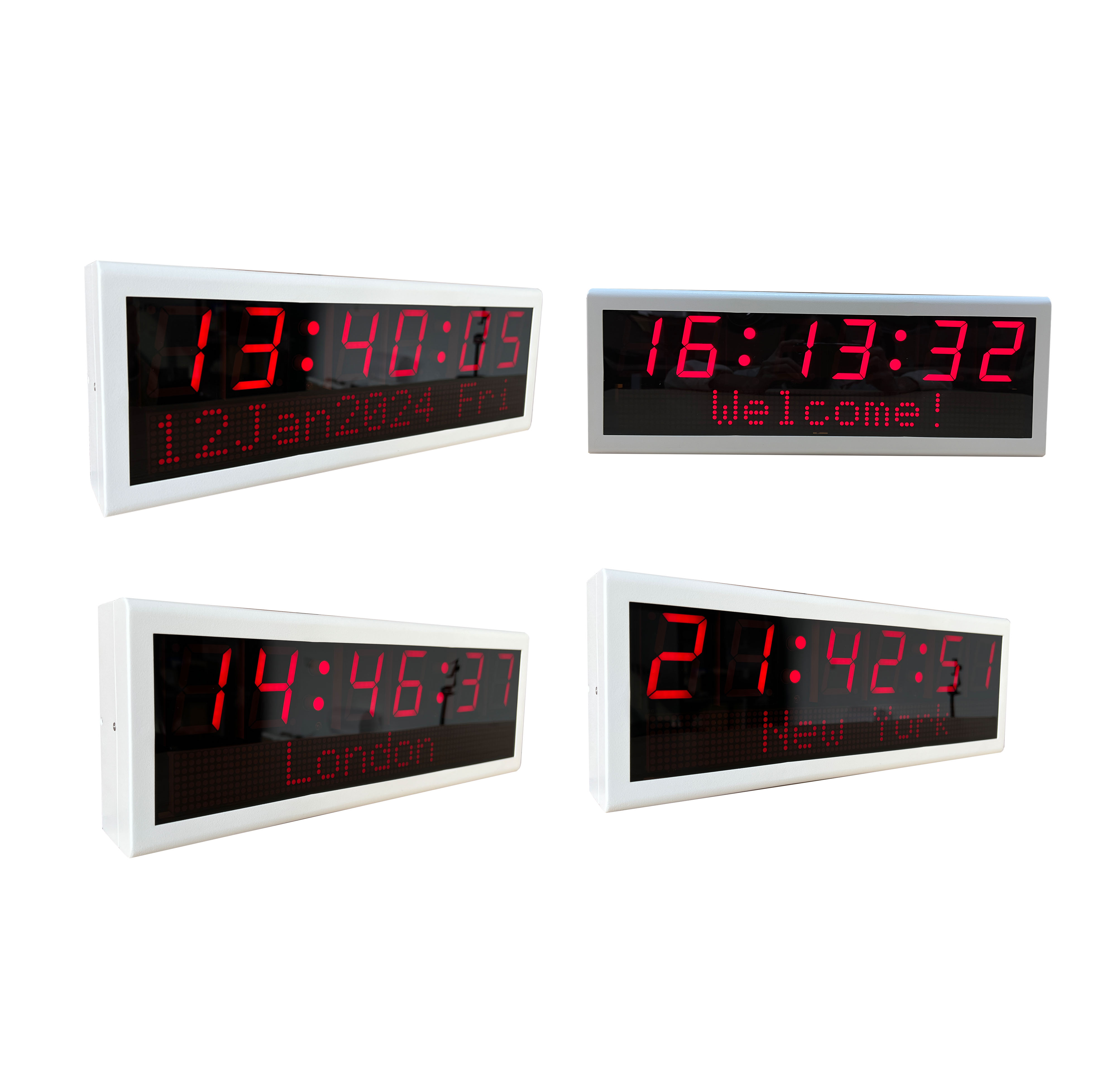

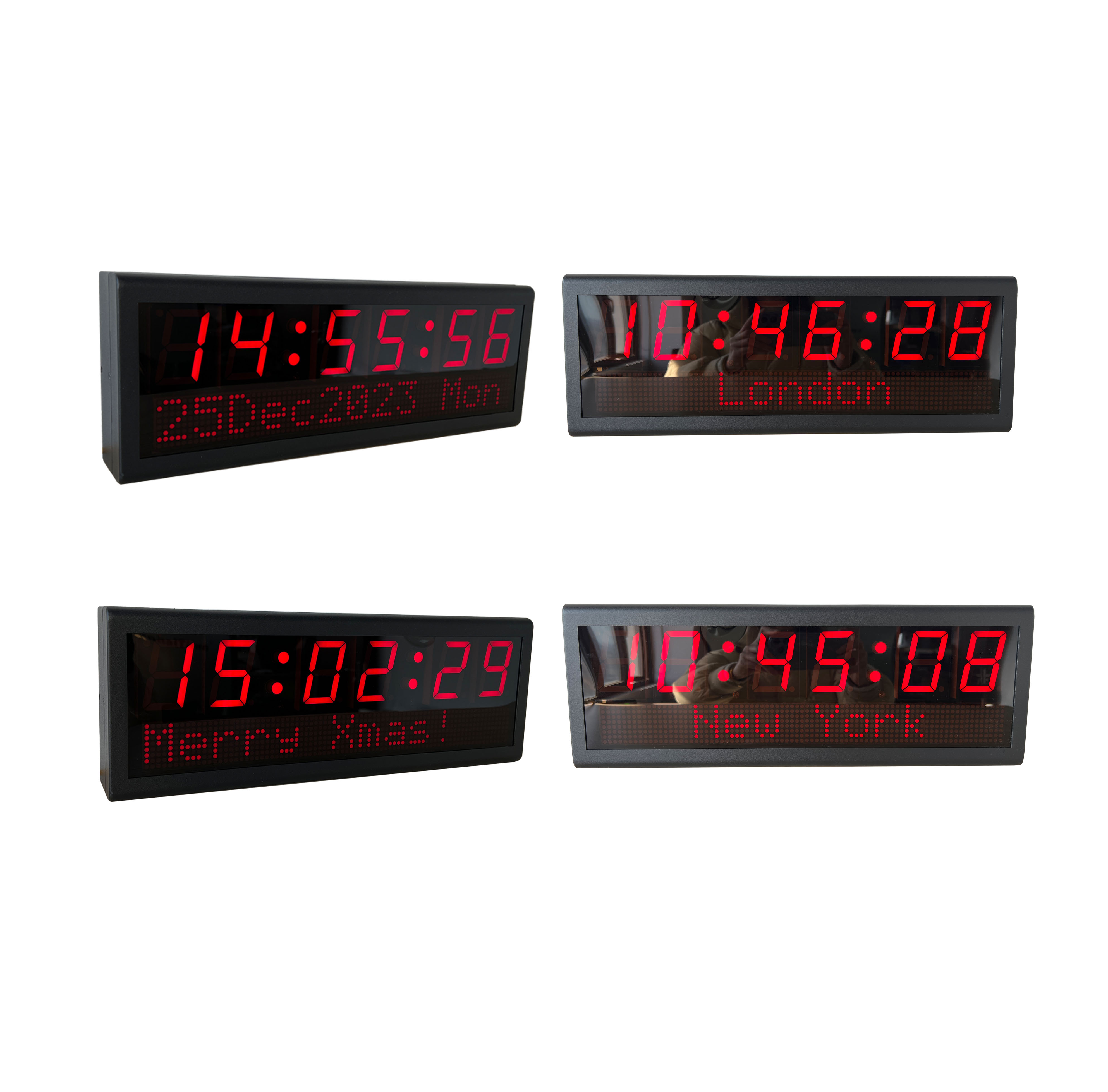

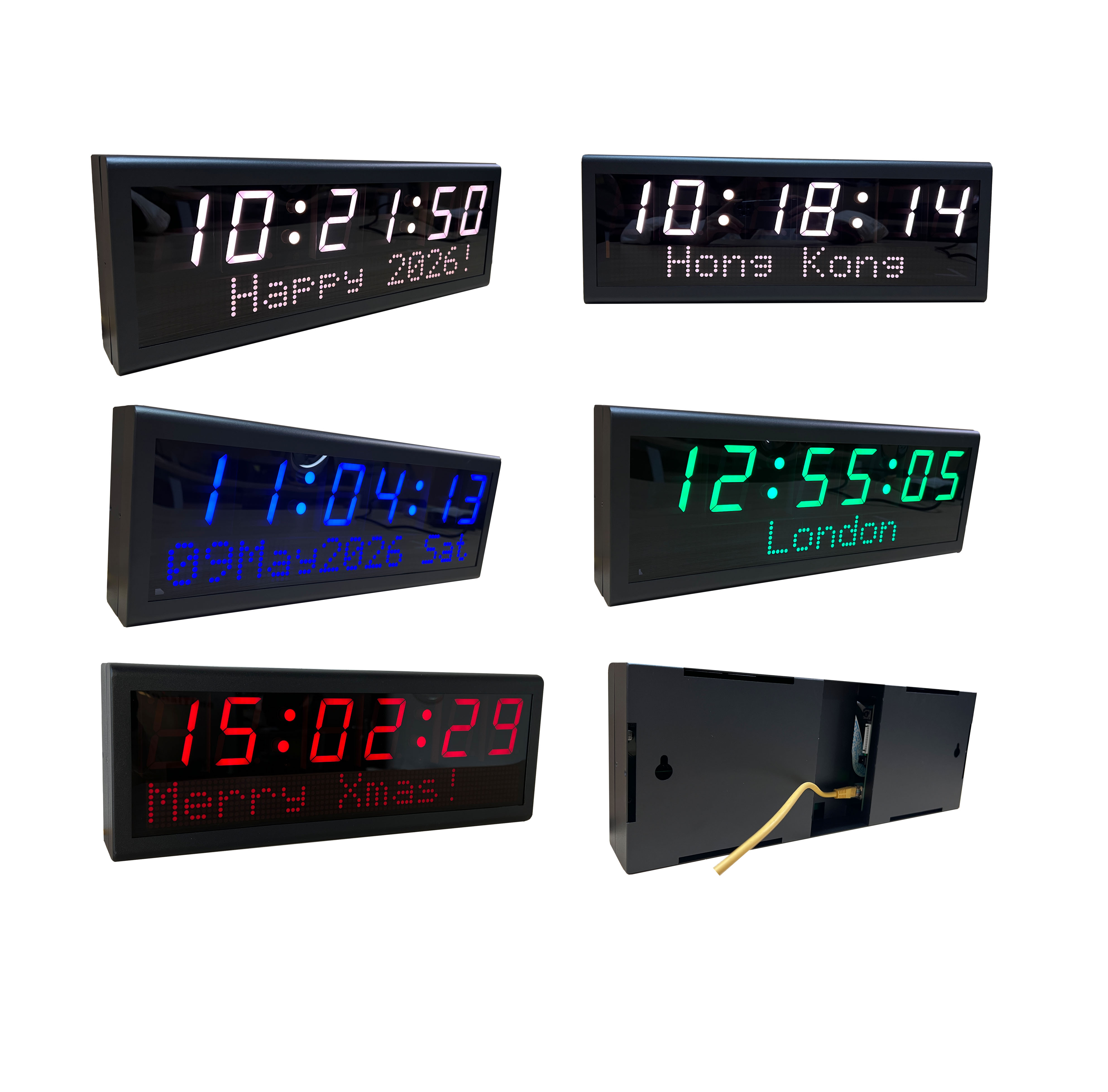

• Available LED Color: red, green, white, blue.

• Size: 43cm*15.5cm*6.3cm, Weight: 2kg

• Display: 2.3” digit (56mm character), 8*8 dot matrix(38mm high)

• Viewing Distance: 50 feet - 15 meters

• Mounting Options: pendant, cantilever, surface

Features

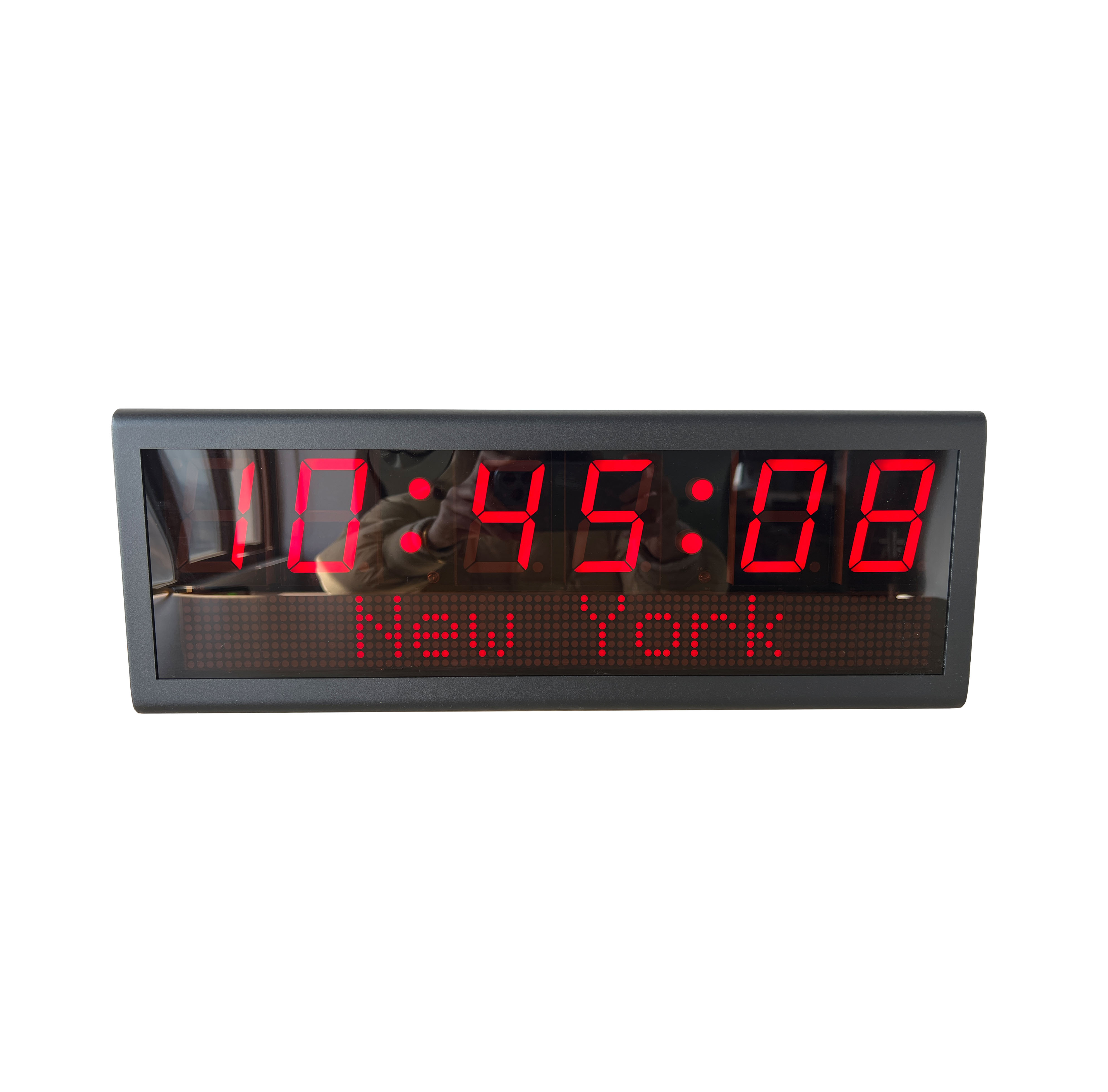

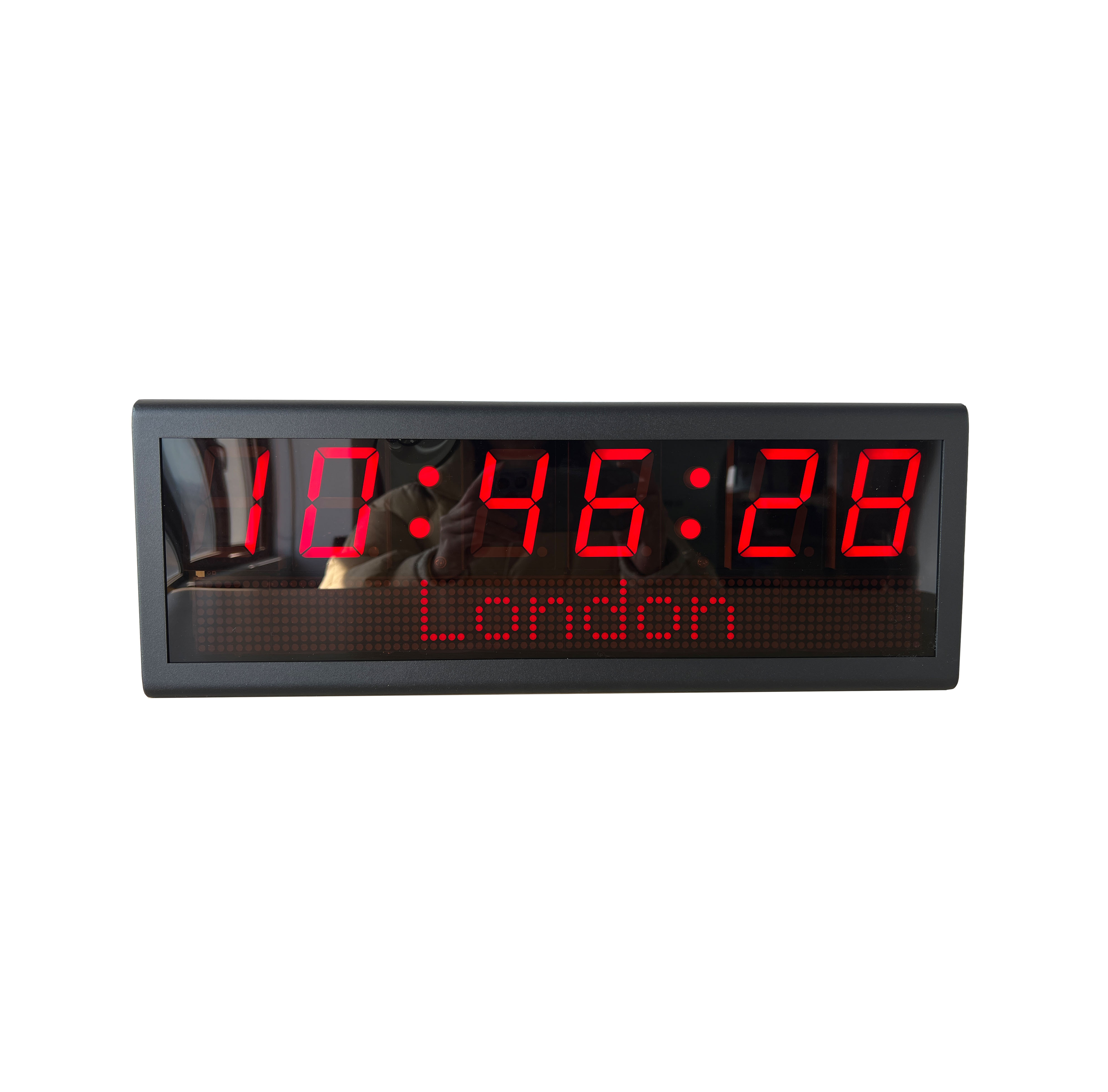

• Available with 2.3” digits, can display calendar or text in English ( less than 64 bytes)

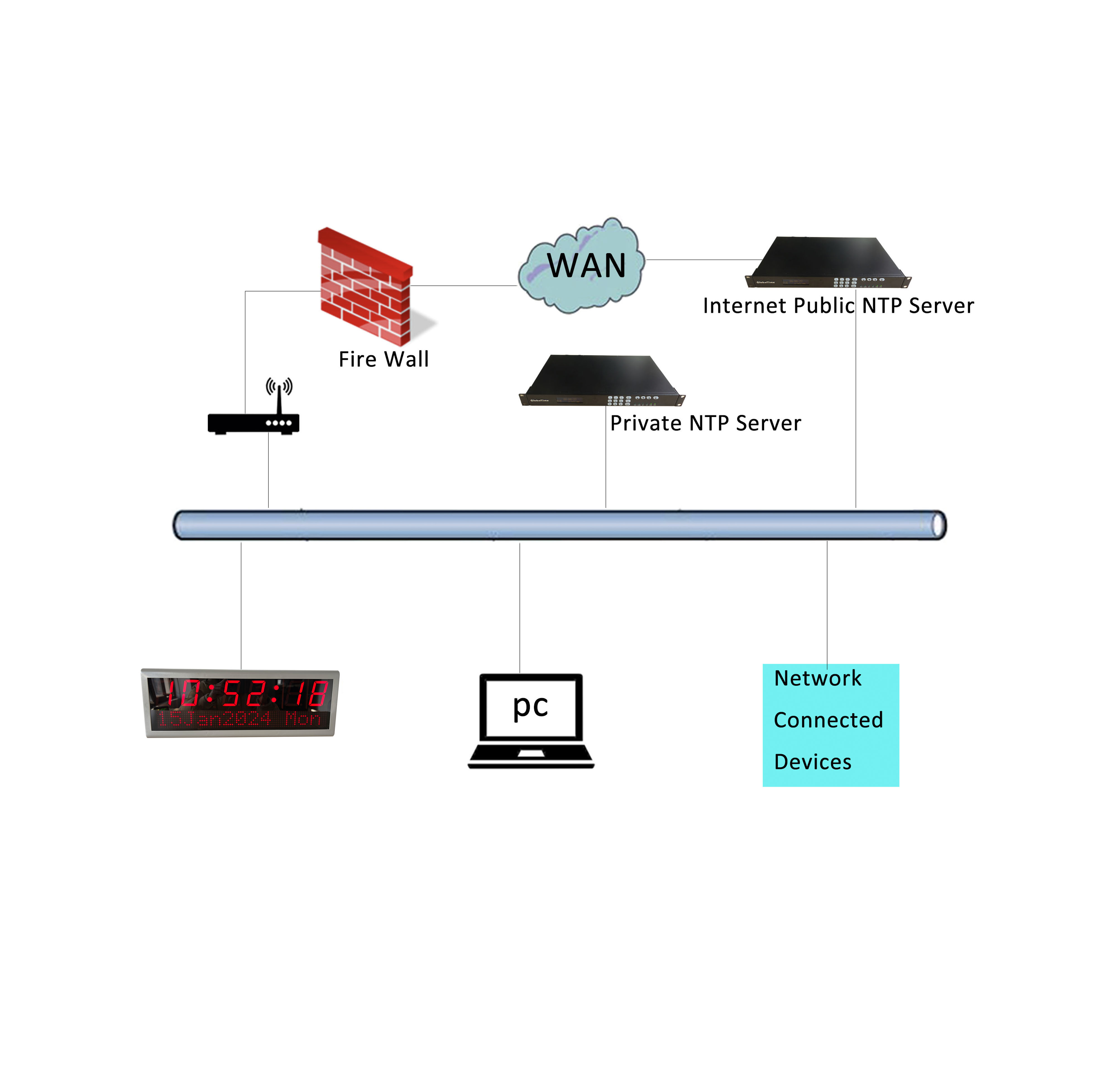

• Draw both power and time updates from the network.
• Power over Ethernet (IEEE802.3af).
• Supports up to 5 SNTP servers for redundancy.
• DHCP or Static IP addressing.
• 12/24 Hour Mode with PM indicator.

• Timezone management. ( Factory-set to your time zone)

• Automatic daylight saving time change. (where applicable)

• Easy plug and play installation.

• Accuracy ±20 milliseconds to NTP/SNTP time server.

• Programmable countdowns.

• Adjustable brightness levels. (brilliant, bright, normal, dim, off)

• If connection to NTP server is lost the clocks will continue to run on the built-in time base. When the connection is restored it will synchronize automatically.

• The clock features time loss notification by having a light on on the right lower corner.

Optional

Capable of interface with:

(1) A temperature sensor or a temperature and humidity sensor

If a temperature sensor is added to the clock, we can configure the clock to display only the time, only the temperature, or alternate between displaying both.

If a temperature and humidity sensor is added to the clock, we can configure the clock to display only the time, only the temperature and humidity (alternating display), or alternate between displaying the time, temperature, and humidity.

(2) Built-in bell relay

We can add a built-in bell relay to the clock. Then the clock can be connected to a bell. The bell can be programmed to ring at 30 different moments using the management software.
